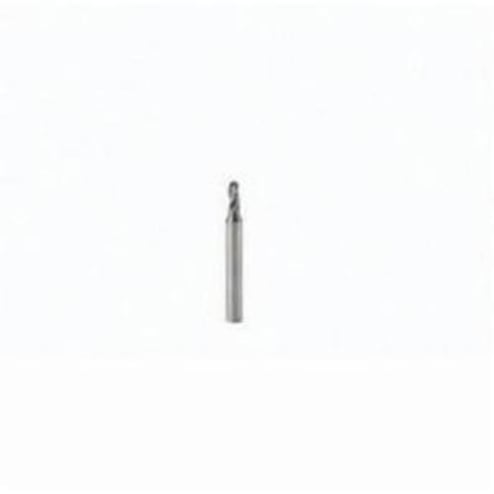

Seco JABRO® Solid2 75230 JS533 Ball End Single End Stub Length End Mill, 1/16 in Dia Cutter, 1/8 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, SIRA/PVD Coated


Description

Seco JABRO® Solid2 End Mill, Ball End Single End Stub Length, Series: JS533, 1/16 in Diameter Cutter, 1-1/2 in Overall Length, 1/8 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: JS533.063F1B.0Z3-SIRA, ISO Code: JS533.062F1B.0Z3-SIRA, Solid Carbide, SIRA/PVD Coated

Seco's new generation of Jabro-Solid2 solid endmills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimised geometries and special edge preparations along with a new NXT coating technology.

Specifications

ANSI Code JS533.063F1B.0Z3-SIRA
Cutter Diameter 1/16 in
Cutting Direction Right Hand
Finish SIRA/PVD Coated
Flute Type Spiral
Helix Angle 30 deg
ISO Code JS533.062F1B.0Z3-SIRA
Length of Cut 1/8 in
Material Solid Carbide
Number of Flutes 3
Overall Length 1-1/2 in
Series JS533
Shank Diameter 1/8 in
Shank Type Cylindrical
Type Ball End Single End Stub Length

Country of Origin: Netherlands

Application:
General Machining Applications

Features

  • JABRO®-Solid2 - General machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • Sira, also known as Siron-A, is a coatings that offers heat resistance, allows for smooth chip flows and enhances tool life, it is used on a variety of materials including steel, stainless steel and cast iron
  • 90 deg cutting edge
  • 0.7 mm corner radius
  • 28 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • F - Step tool shape
  • 0 deg corner chamfer
