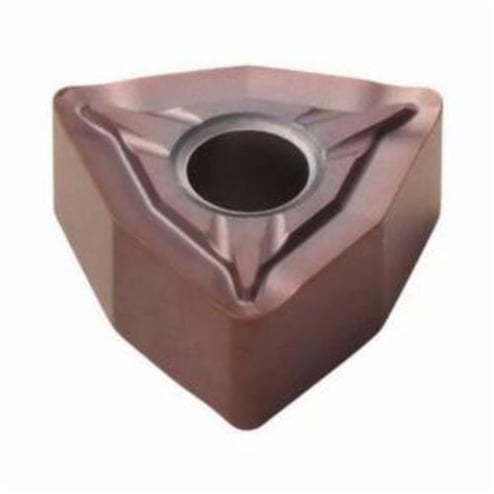

Seco 75051 Turning Insert, ANSI Code: WNMG332-FF2 TP1030, WNMG Insert, Material Grade: P, 060408 Insert, Trigon Shape, 06 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1030


Description

Seco Turning Insert, WNMG Insert, 060408 Insert, Trigon, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Negative Rake, FF2 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturer's Grade: TP1030, ANSI Code: WNMG332-FF2 TP1030, ISO Code: WNMG060408-FF2 TP1030, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code WNMG332-FF2 TP1030
Chipbreaker FF2
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish PVD-TiAlSiN Coated
For Use On Steel
Hole Diameter 3.81 mm
Included Angle 80 deg
Inscribed Circle 9.52 mm
Insert Size 060408
Insert Style WNMG
ISO Code WNMG060408-FF2 TP1030
Manufacturer's Grade TP1030
Material Carbide
Material Grade P
Maximum Depth of Cut 3.75 mm
Rake Negative
Relief Angle 0 deg
Seat Size 06
Shape Trigon
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Finishing Applications
