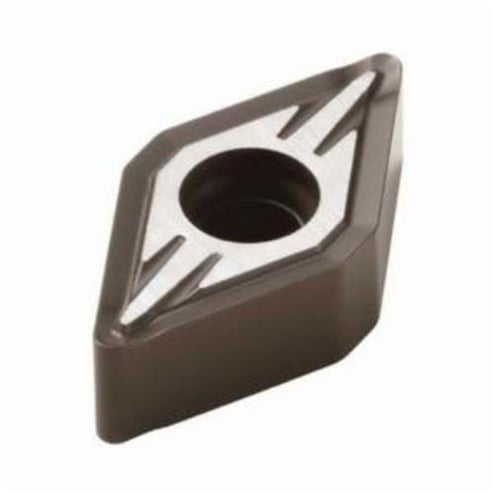

Seco 75038 Turning Insert, ANSI Code: DNMU332-FF2 TP3500, DNMU Insert, Material Grade: P, 110408 Insert, Diamond Shape, 11 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP3500


Description

Seco Turning Insert, DNMU Insert, 110408 Insert, Diamond, 3.75 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 4.76 mm Thickness, 11 Seat, Negative Rake, FF2 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturer's Grade: TP3500, ANSI Code: DNMU332-FF2 TP3500, ISO Code: DNMU110408-FF2 TP3500, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code DNMU332-FF2 TP3500
Chipbreaker FF2
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 3.81 mm
Included Angle 55 deg
Inscribed Circle 9.53 mm
Insert Size 110408
Insert Style DNMU
ISO Code DNMU110408-FF2 TP3500
Manufacturer's Grade TP3500
Material Carbide
Material Grade P
Maximum Depth of Cut 3.75 mm
Rake Negative
Relief Angle 0 deg
Seat Size 11
Shape Diamond
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Finishing Applications
