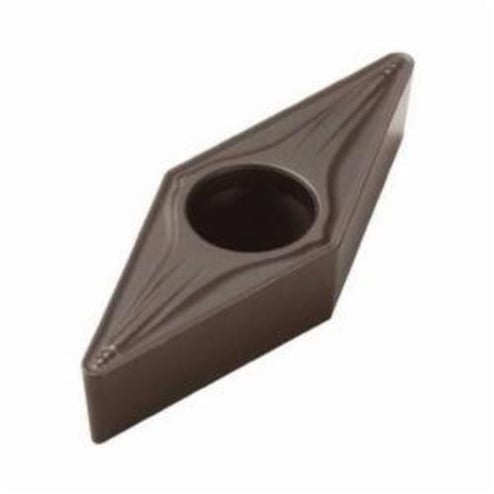

Seco 74933 Turning Insert, ANSI Code: VBMT332-M5 TP1500, VBMT Insert, Material Grade: P, 160408 Insert, Diamond Shape, 16 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1500


Description

Seco Turning Insert, VBMT Insert, 160408 Insert, Diamond Shape, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Negative/Positive Rake, M5 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Diameter Hole, Manufacturer's Grade: TP1500, ANSI Code: VBMT332-M5 TP1500, ISO Code: VBMT160408-M5 TP1500, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code VBMT332-M5 TP1500
Chipbreaker M5
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 4.5 mm
Included Angle 35 deg
Inscribed Circle 9.52 mm
Insert Size 160408
Insert Style VBMT
ISO Code VBMT160408-M5 TP1500
Manufacturer's Grade TP1500
Material Carbide
Material Grade P
Maximum Depth of Cut 3.75 mm
Rake Negative/Positive
Relief Angle 5 deg
Seat Size 16
Shape Diamond
Thickness 4.76 mm

Country of Origin: Czech Republic

Application:
Medium Applications
