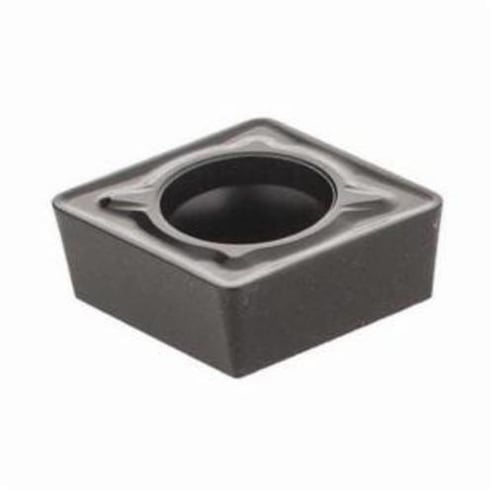

Seco 74793 Turning Insert, ANSI Code: CCMT432-M5 TK1001, CCMT Insert, Material Grade: K, 120408 Insert, Diamond Shape, 12 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturer's Grade: TK1001


Description

Seco Turning Insert, CCMT Insert, 120408 Insert, Diamond Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative/Positive Rake, M5 Chipbreaker, 0.8 mm Corner Radius, 5.6 mm Diameter Hole, Manufacturer's Grade: TK1001, ANSI Code: CCMT432-M5 TK1001, ISO Code: CCMT120408-M5 TK1001, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: K, For Use On: Cast Iron

Specifications

ANSI Code CCMT432-M5 TK1001
Chipbreaker M5
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Cast Iron
Hole Diameter 5.6 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 120408
Insert Style CCMT
ISO Code CCMT120408-M5 TK1001
Manufacturer's Grade TK1001
Material Carbide
Material Grade K
Maximum Depth of Cut 5.25 mm
Rake Negative/Positive
Relief Angle 7 deg
Seat Size 12
Shape Diamond
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium Applications
