Seco 00074102 Snap-Tap® Laydown Threading Insert, ANSI Code: 27ER4API384 CP500, 27ER Insert, 4 TPI, External Thread, API Rotary Drilling Connection Thread, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M


Description

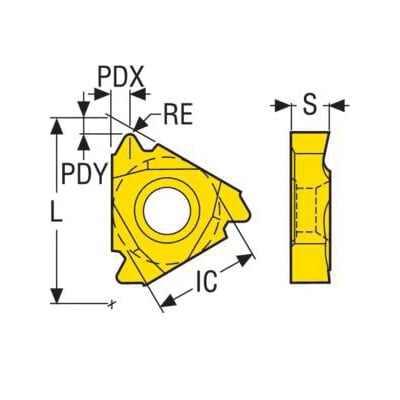

Seco Threading Insert, Laydown, Series: Snap-Tap®, 27ER Insert, 27 Insert, External, API Rotary Drilling Connection, 4, 15.9 mm Inscribed Circle, 6.2 mm Thickness, 27 mm Length, ANSI Code: 27ER4API384 CP500, ISO Code: 27ER4API384 CP500, 0.97 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

Specifications

ANSI Code 27ER4API384 CP500
Corner Radius 0.97 mm
Cutting Direction Right Hand
Finish PVD-TiAlN+TiN Coated
Included Angle 60 deg
Inscribed Circle 15.9 mm
Insert Size 27
Insert Style 27ER
ISO Code 27ER4API384 CP500
Length 27 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Series Snap-Tap®
Thickness 6.2 mm
Thread Standard API Rotary Drilling Connection
Thread Type External
Threads per Inch 4
Type Laydown

Country of Origin: India
