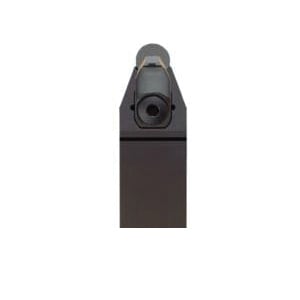

Seco 73881 Indexable Turning Tool Holder, ANSI Code: CRDNN-24-4, CRDN Tool Holder, RNGN 42S Insert, Neutral Cutting, 38.1 mm W Shank, 45 deg Lead Angle, Neutral Rake, 177.8 mm OAL


Description

Seco Indexable Turning Tool Holder, CRDN Tool Holder, 177.8 mm Overall Length, 38.1 mm W Shank, Insert Compatibility: RNGN 42S, Neutral Cutting, 12.7 mm Inscribed Circle, 25.4 mm Back of Bar to Cutting Edge, 45 deg Lead Angle, ANSI Code: CRDNN-24-4, Neutral Rake, Steel

This wide offering of easily applicable shank and boring bar toolholders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI toolholders accommodates a comprehensive range of insert types, shapes and sizes, also allowing choice of several leading clamping methods.

Specifications

ANSI Code CRDNN-24-4
Back of Bar to Cutting Edge 25.4 mm
Cutting Direction Neutral
Inscribed Circle 12.7 mm
Insert Compatibility RNGN 42S
Lead Angle 45 deg
Material Steel
Overall Length 177.8 mm
Rake Neutral
Shank Size 38.1 mm W
Tool Holder Style CRDN

Country of Origin: India
