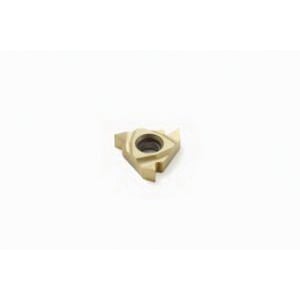

Seco 00073109 Snap-Tap® Laydown Threading Insert, ANSI Code: 22NRN60 CP500, 22NRN Insert, 7 to 5 TPI, Internal Thread, 60 deg Partial Profile Thread, 3.5 to 5 mm Pitch, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M


Description

Seco Threading Insert, Laydown, Series: Snap-Tap®, 22NRN Insert, 22 Insert, Internal Thread, 60 deg Partial Profile Thread Standard, 3.5 to 5 mm Pitch, 7 to 5 Threads per Inch, 12.7 mm Inscribed Circle, 4.7 mm Thickness, 22 mm Length, ANSI Code: 22NRN60 CP500, ISO Code: 22NRN60 CP500, 0.25 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: CP500, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

Specifications

ANSI Code 22NRN60 CP500
Corner Radius 0.25 mm
Cutting Direction Right Hand
Finish PVD-TiAlN+TiN Coated
Included Angle 60 deg
Inscribed Circle 12.7 mm
Insert Size 22
Insert Style 22NRN
ISO Code 22NRN60 CP500
Length 22 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Pitch 3.5 to 5 mm
Series Snap-Tap®
Thickness 4.7 mm
Thread Standard 60 deg Partial Profile
Thread Type Internal
Threads per Inch 7 to 5
Type Laydown

Country of Origin: India
