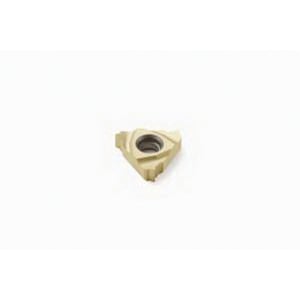

Seco 00072797 Snap-Tap® Laydown Threading Insert, ANSI Code: 22NR5UN CP500, 22NR Insert, 5 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M


Description

Seco Threading Insert, Laydown, Series: Snap-Tap®, 22NR Insert, 22 Insert, Internal, UN, 5, 12.7 mm Inscribed Circle, 4.7 mm Thickness, 22 mm Length, ANSI Code: 22NR5UN CP500, ISO Code: 22NR5UN CP500, 0.36 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

The Thread turning insert 22NR5UN CP500 features a UN internal thread form type with a minimum of 5 threads per inch. It is manufactured with a carbide PVD grade CP500. The insert has one tooth and three cutting edges. This insert is designed for use with steel, stainless steel, cast irons, superalloys, and titanium, and it is partially applicable for non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

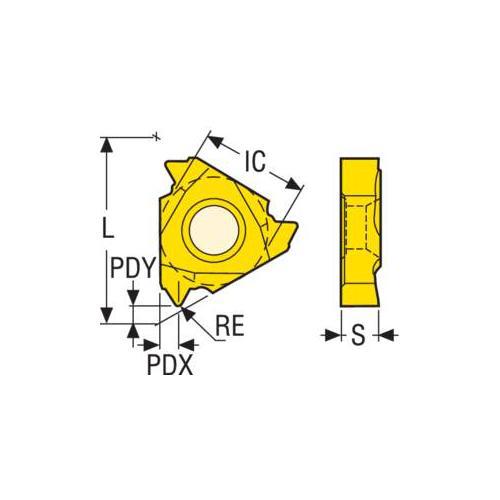

Specifications

ANSI Code 22NR5UN CP500
Corner Radius 0.36 mm
Cutting Direction Right Hand
Finish PVD-TiAlN+TiN Coated
Included Angle 60 deg
Inscribed Circle 12.7 mm
Insert Size 22
Insert Style 22NR
ISO Code 22NR5UN CP500
Length 22 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Series Snap-Tap®
Thickness 4.7 mm
Thread Standard UN
Thread Type Internal
Threads per Inch 5
Type Laydown

Country of Origin: India
