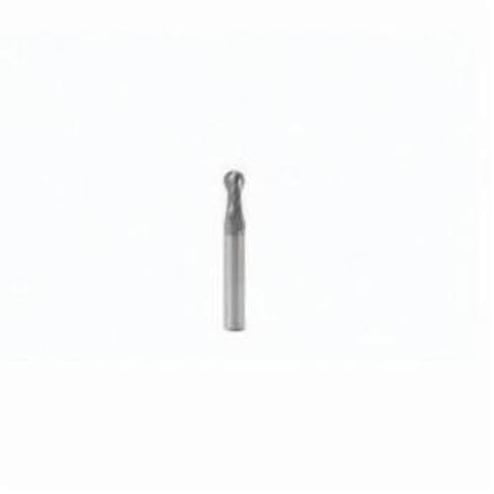

Seco JABRO® Solid2 70988 JS532 Ball End Center Cutting Single End Standard Length End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, SIRA/PVD Coated


Description

Seco JABRO® Solid2 End Mill, Ball End Center Cutting Single End Standard Length, Series: JS532, 1/2 in Diameter Cutter, 3-1/4 in Overall Length, 1 in Length of Cut, 2 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: JS532.500D1B.0Z2-SIRA, ISO Code: JS532.500D1B.0Z2-SIRA, Solid Carbide, SIRA/PVD Coated

Seco's new generation of Jabro-Solid2 solid endmills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimised geometries and special edge preparations along with a new NXT coating technology.

Specifications

ANSI Code JS532.500D1B.0Z2-SIRA
Cutter Diameter 1/2 in
Cutting Direction Right Hand
Finish SIRA/PVD Coated
Flute Type Spiral
Helix Angle 30 deg
ISO Code JS532.500D1B.0Z2-SIRA
Length of Cut 1 in
Material Solid Carbide
Number of Flutes 2
Overall Length 3-1/4 in
Series JS532
Shank Diameter 1/2 in
Shank Type Cylindrical
Type Ball End Center Cutting Single End Standard Length

Country of Origin: Netherlands

Application:
General Machining Applications

Features

  • JABRO®-Solid2 - General machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • Sira, also known as Siron-A, is a coatings that offers heat resistance, allows for smooth chip flows and enhances tool life, it is used on a variety of materials including steel, stainless steel and cast iron
  • 90 deg cutting edge
  • 1/4 in corner radius
  • 45 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • D - Cylindrical tool shape
  • 2 teeth across centre cut
