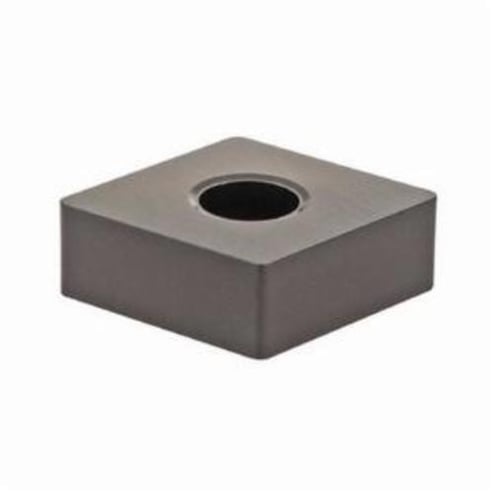

Seco 70179 Turning Insert, ANSI Code: CNMA542 TK1001, CNMA Insert, Material Grade: K, 160608 Insert, Diamond Shape, 16 Seat, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturer's Grade: TK1001


Description

Seco Turning Insert, CNMA Insert, 160608 Insert, Diamond, 8 mm Maximum Depth of Cut, 15.88 mm Inscribed Circle, 6.35 mm Thickness, 16 Seat, 0.8 mm Corner Radius, 6.35 mm Hole Dia, Manufacturer's Grade: TK1001, ANSI Code: CNMA542 TK1001, ISO Code: CNMA160608 TK1001, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: K, For Use On: Cast Iron

Specifications

ANSI Code CNMA542 TK1001
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Cast Iron
Hole Diameter 6.35 mm
Included Angle 80 deg
Inscribed Circle 15.88 mm
Insert Size 160608
Insert Style CNMA
ISO Code CNMA160608 TK1001
Manufacturer's Grade TK1001
Material Carbide
Material Grade K
Maximum Depth of Cut 8 mm
Relief Angle 0 deg
Seat Size 16
Shape Diamond
Thickness 6.35 mm

Country of Origin: Sweden

Application:
For finishing, medium-rough machining and rough machining of steels
