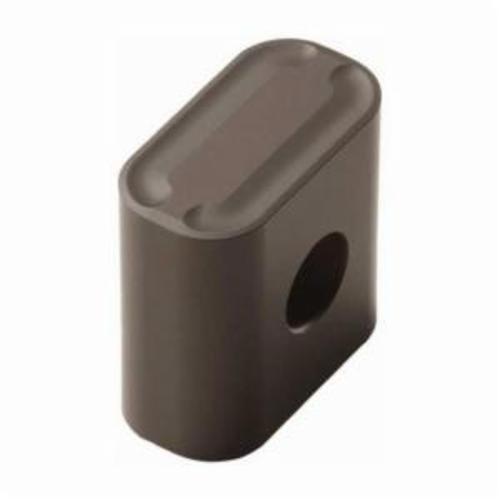

Seco 69667 Turning Insert, ANSI Code: LNMX191940-MR TK2001, LNMX Insert, Material Grade: K, 191940 Insert, Rectangle Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturer's Grade: TK2001


Description

Seco Turning Insert, LNMX Insert, 191940 Insert, Rectangle Shape, 19.05 mm Thickness, 10 mm Width, 19.05 mm Length, 19 Seat, Negative Rake, MR Chipbreaker, 4 mm Corner Radius, 6.35 mm Diameter Hole, Manufacturer's Grade: TK2001, ANSI Code: LNMX191940-MR TK2001, ISO Code: LNMX191940-MR TK2001, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: K, For Use On: Cast Iron

Specifications

ANSI Code LNMX191940-MR TK2001
Chipbreaker MR
Corner Radius 4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Cast Iron
Hole Diameter 6.35 mm
Included Angle 90 deg
Insert Size 191940
Insert Style LNMX
ISO Code LNMX191940-MR TK2001
Length 19.05 mm
Manufacturer's Grade TK2001
Material Carbide
Material Grade K
Rake Negative
Relief Angle 0 deg
Seat Size 19
Shape Rectangle
Thickness 19.05 mm
Width 10 mm

Country of Origin: Czech Republic

Application:
Medium and Roughing
