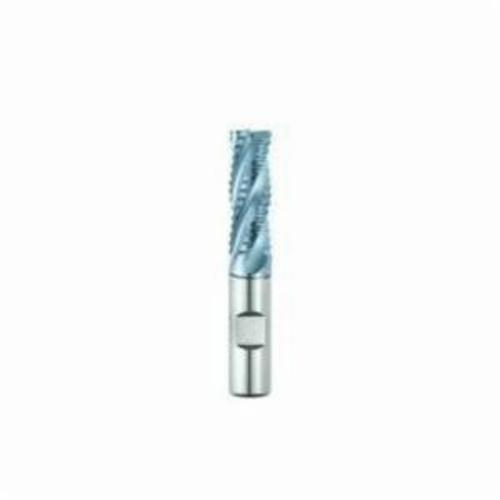

Seco Niagara Cutter 17013512 REM710 Extended Reach Non-Center Cutting Single End End Mill, 1-1/4 in Dia Cutter, 0.04 in Corner Radius, 6 in Length of Cut, 6 Flutes, 1-1/4 in Dia Shank, 8-1/2 in OAL, TiCN Coated


Description

Seco Niagara Cutter End Mill, Extended Reach Non-Center Cutting Single End, Series: REM710, 1-1/4 in Diameter Cutter, 0.04 in Corner Radius, 8-1/2 in Overall Length, 6 in Length of Cut, 6 Flutes, Spiral Flute, 1-1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: REM710-1.250-D5-C040.3-Z6, ISO Code: REM7101.250D5C040.3Z6, M42 HSS-Co 8, TiCN Coated

Specifications

ANSI Code REM710-1.250-D5-C040.3-Z6
Corner Radius 0.04 in
Cutter Diameter 1-1/4 in
Cutting Direction Right Hand
Finish TiCN Coated
Flute Type Spiral
Helix Angle 30 deg
ISO Code REM7101.250D5C040.3Z6
Length of Cut 6 in
Material M42 HSS-Co 8
Number of Flutes 6
Overall Length 8-1/2 in
Series REM710
Shank Diameter 1-1/4 in
Shank Type Weldon Flat
Type Extended Reach Non-Center Cutting Single End

Country of Origin: United States

Application:
General Purpose, Profiling and Slotting
