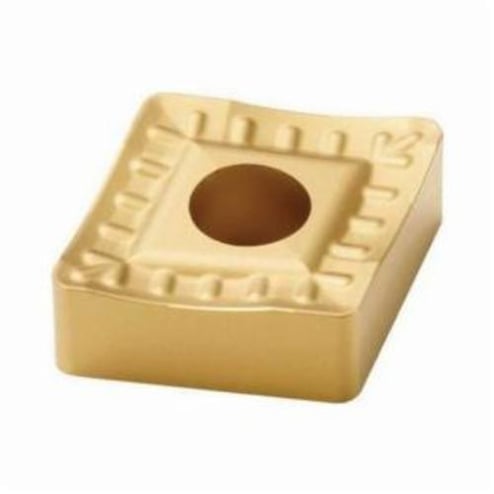

Seco 69068 Turning Insert, ANSI Code: CNMM644-R4 TP200, CNMM Insert, Material Grade: P, 190616 Insert, Diamond Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP200


Description

Seco Turning Insert, CNMM Insert, 190616 Insert, Diamond, 12 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, Negative Rake, R4 Chipbreaker, 1.6 mm Corner Radius, 7.92 mm Hole Dia, Manufacturer's Grade: TP200, ANSI Code: CNMM644-R4 TP200, ISO Code: CNMM190616-R4 TP200, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code CNMM644-R4 TP200
Chipbreaker R4
Corner Radius 1.6 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3+TiN Coated
For Use On Steel
Hole Diameter 7.92 mm
Included Angle 80 deg
Inscribed Circle 19.05 mm
Insert Size 190616
Insert Style CNMM
ISO Code CNMM190616-R4 TP200
Manufacturer's Grade TP200
Material Carbide
Material Grade P
Maximum Depth of Cut 12 mm
Rake Negative
Relief Angle 0 deg
Seat Size 19
Shape Diamond
Thickness 6.35 mm

Country of Origin: Czech Republic

Application:
Roughing Applications
