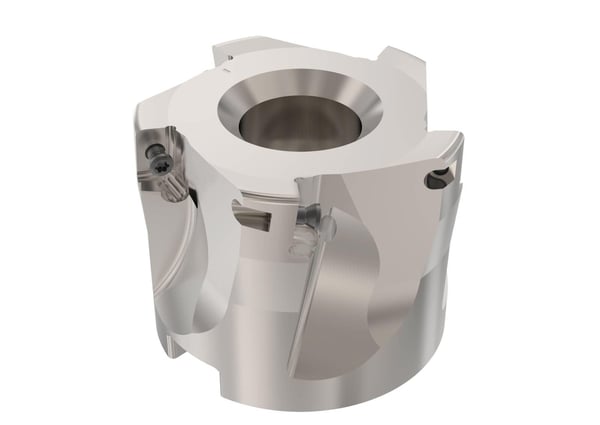

Seco 02769710 R220.69 Indexable Square Shoulder Mills, 1.969 in Dia Cutting, 0.354 in Max Depth of Cut, 0.866 in Dia Arbor Hole


Description

Seco, 02769710, Square Shoulder Mills, Indexable, Series: R220.69, 1.969 in Diameter Cutting, 0.354 in Maximum Depth of Cut, 5 Inserts, Arbor Shank, 0.866 in Arbor Hole, Steel

Specifications

Arbor Hole Diameter 0.866 in
Cutting Diameter 1.969 in
Material Steel
Maximum Depth of Cut 0.354 in
Number of Inserts 5
Series R220.69
Shank Type Arbor
Type Indexable

Country of Origin: Sweden

Features

  • Coated, pre-hardened cutter body with two different pitch configurations for meeting tight tolerances and providing high reliability in a broad range of workpiece materials
  • Not only does this coated/hardened surface protect the tool from wear, it also prevents chips from welding on the cutter body
