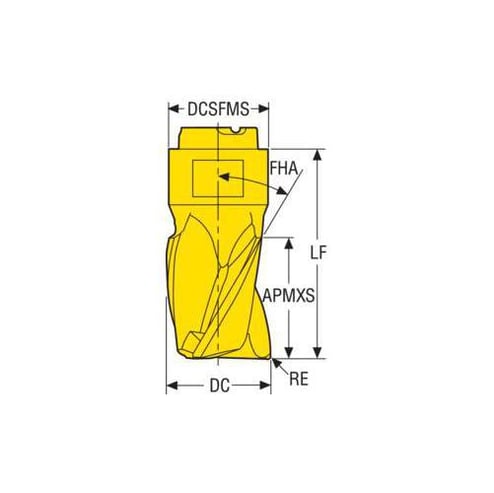

Seco 02756705 MP16 Tip Milling Insert, MP16 Milling Tip Style, Carbide, 0.8 mm Corner Radius, Manufacturer's Grade: F40M, (3) Flutes, C5 Material Grade


Description

Seco, 02756705, Milling Insert, Tip, Series: MP16, MP16 Milling Tip, 15.875 mm Diameter Cutting, 19 mm Maximum Depth of Cut, 3 Flutes, E05 Chipbreaker, 0.8 mm Corner Radius, 90 deg Included Angle, Manufacturer's Grade: F40M, Carbide, TiAlN/TiN, Material Grade: C5

Specifications

Chipbreaker E05
Corner Radius 0.8 mm
Cutting Diameter 15.875 mm
Finish TiAlN/TiN
Included Angle 90 deg
Manufacturer's Grade F40M
Material Carbide
Material Grade C5
Maximum Depth of Cut 19 mm
Milling Tip Style MP16
Number of Flutes 3
Series MP16
Type Tip

Country of Origin: Sweden

Standards and Approvals: PROP65

Features

  • A unique, versatile end milling system that can combine different solutions for optimum accessibility and maximum stability and security,
  • PVD-coated grade for fine to medium rough milling, first choice for milling with small feeds and/or low cutting speeds
  • Excellent for milling when there is a risk of vibrations and when coolant is used
  • Recommended for machining superalloys
