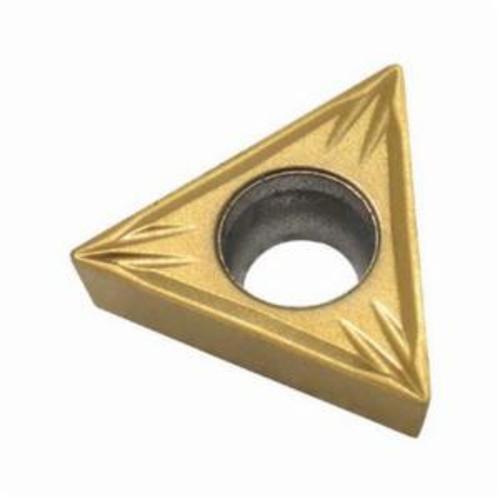

Seco 02755046 Turning Insert, ANSI Code: TCMT32.52-MF2 CP500, TCMT Insert, Material Grade: M, 16T308 Insert, Triangular Shape, 16 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: CP500


Description

Seco Turning Insert, TCMT Insert, 16T308 Insert, Triangular Shape, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 16.5 mm Length, 16 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Diameter Hole, Manufacturer's Grade: CP500, ANSI Code: TCMT32.52-MF2 CP500, ISO Code: TCMT16T308-MF2 CP500, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code TCMT32.52-MF2 CP500
Chipbreaker MF2
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish PVD-TiAlN+TiN Coated
For Use On Stainless Steel
Hole Diameter 4.5 mm
Included Angle 60 deg
Inscribed Circle 9.52 mm
Insert Size 16T308
Insert Style TCMT
ISO Code TCMT16T308-MF2 CP500
Length 16.5 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Maximum Depth of Cut 3.75 mm
Rake Negative/Positive
Relief Angle 7 deg
Seat Size 16
Shape Triangular
Thickness 3.97 mm

Country of Origin: India

Application:
Medium and Finishing
