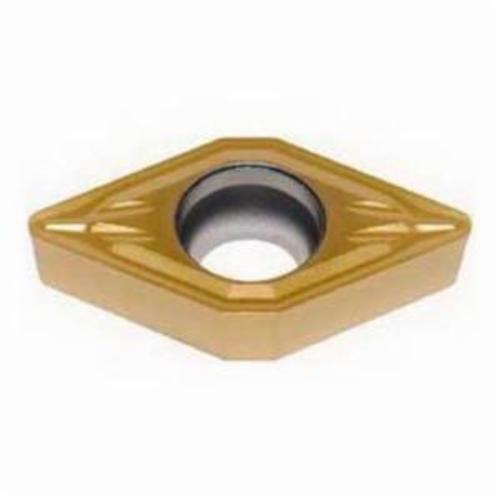

Seco 02755039 Turning Insert, ANSI Code: DCMT32.50.5-MF2 CP500, DCMT Insert, Material Grade: M, 11T302 Insert, Diamond Shape, 11 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: CP500


Description

Seco Turning Insert, DCMT Insert, 11T302 Insert, Diamond Shape, 3.75 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.2 mm Corner Radius, 4.5 mm Diameter Hole, Manufacturer's Grade: CP500, ANSI Code: DCMT32.50.5-MF2 CP500, ISO Code: DCMT11T302-MF2 CP500, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code DCMT32.50.5-MF2 CP500
Chipbreaker MF2
Corner Radius 0.2 mm
Cutting Direction Neutral
Finish PVD-TiAlN+TiN Coated
For Use On Stainless Steel
Hole Diameter 4.5 mm
Included Angle 55 deg
Inscribed Circle 9.5 mm
Insert Size 11T302
Insert Style DCMT
ISO Code DCMT11T302-MF2 CP500
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Maximum Depth of Cut 3.75 mm
Rake Negative/Positive
Relief Angle 7 deg
Seat Size 11
Shape Diamond
Thickness 3.97 mm

Country of Origin: India

Application:
Medium and Finishing
