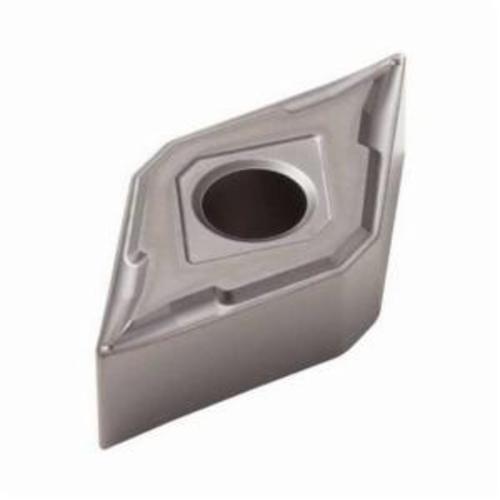

Seco 66882 Turning Insert, ANSI Code: DNMG442-MF2 TP1020, DNMG Insert, Material Grade: P, 150608 Insert, Diamond Shape, 15 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1020


Description

Seco Turning Insert, DNMG Insert, 150608 Insert, Diamond Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.35 mm Thickness, 15 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP1020, ANSI Code: DNMG442-MF2 TP1020, ISO Code: DNMG150608-MF2 TP1020, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, Cermet Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code DNMG442-MF2 TP1020
Chipbreaker MF2
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish Cermet Coated
For Use On Steel
Hole Diameter 5.15 mm
Included Angle 55 deg
Inscribed Circle 12.7 mm
Insert Size 150608
Insert Style DNMG
ISO Code DNMG150608-MF2 TP1020
Manufacturer's Grade TP1020
Material Carbide
Material Grade P
Maximum Depth of Cut 5.25 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 15
Shape Diamond
Thickness 6.35 mm

Country of Origin: Sweden

Application:
Medium and Finishing
