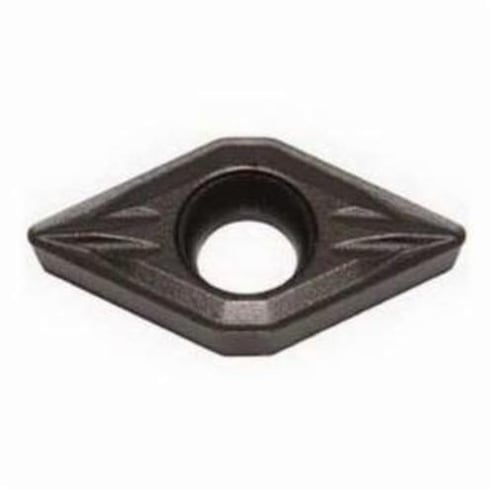

Seco 66853 Turning Insert, ANSI Code: DCMT21.52-MF2 TP3500, DCMT Insert, Material Grade: P, 070208 Insert, Diamond Shape, 07 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP3500


Description

Seco Turning Insert, DCMT Insert, 070208 Insert, Diamond Shape, 2.75 mm Maximum Depth of Cut, 6.4 mm Inscribed Circle, 2.38 mm Thickness, 07 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 2.9 mm Diameter Hole, Manufacturer's Grade: TP3500, ANSI Code: DCMT21.52-MF2 TP3500, ISO Code: DCMT070208-MF2 TP3500, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code DCMT21.52-MF2 TP3500
Chipbreaker MF2
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 2.9 mm
Included Angle 55 deg
Inscribed Circle 6.4 mm
Insert Size 070208
Insert Style DCMT
ISO Code DCMT070208-MF2 TP3500
Manufacturer's Grade TP3500
Material Carbide
Material Grade P
Maximum Depth of Cut 2.75 mm
Rake Negative/Positive
Relief Angle 7 deg
Seat Size 07
Shape Diamond
Thickness 2.38 mm

Country of Origin: Sweden

Application:
Medium and Finishing
