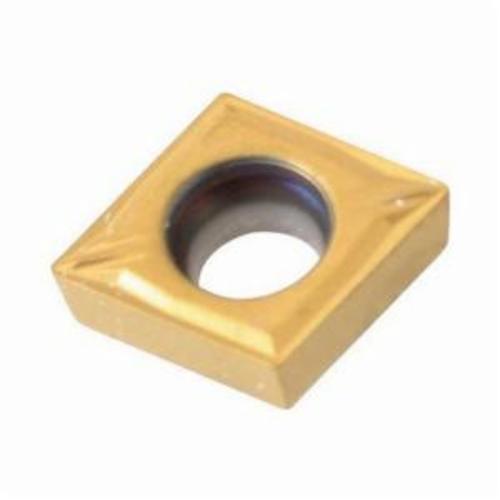

Seco 02754787 Turning Insert, ANSI Code: CCMT21.50.5-MF2 CP500, CCMT Insert, Material Grade: M, 060202 Insert, Diamond Shape, 06 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: CP500


Description

Seco Turning Insert, CCMT Insert, 060202 Insert, Diamond Shape, 2.5 mm Maximum Depth of Cut, 6.4 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.2 mm Corner Radius, 2.9 mm Diameter Hole, Manufacturer's Grade: CP500, ANSI Code: CCMT21.50.5-MF2 CP500, ISO Code: CCMT060202-MF2 CP500, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code CCMT21.50.5-MF2 CP500
Chipbreaker MF2
Corner Radius 0.2 mm
Cutting Direction Neutral
Finish PVD-TiAlN+TiN Coated
For Use On Stainless Steel
Hole Diameter 2.9 mm
Included Angle 80 deg
Inscribed Circle 6.4 mm
Insert Size 060202
Insert Style CCMT
ISO Code CCMT060202-MF2 CP500
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Maximum Depth of Cut 2.5 mm
Rake Negative/Positive
Relief Angle 7 deg
Seat Size 06
Shape Diamond
Thickness 2.38 mm

Country of Origin: Sweden

Application:
Medium and Finishing
