Seco 00065403 Snap-Tap® Laydown Threading Insert, ANSI Code: 22ER4.0ISO CP500, 22ER Insert, External Thread, ISO Thread, 4 mm Pitch, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M


Description

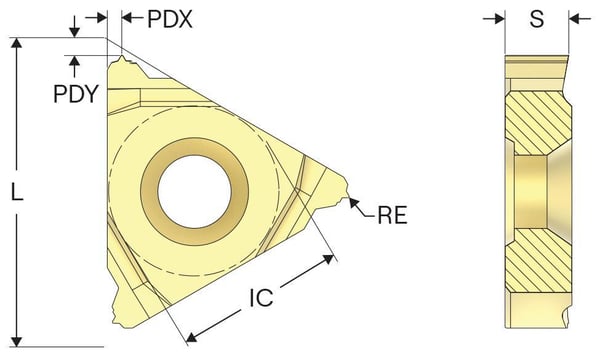

Seco Threading Insert, Laydown, Series: Snap-Tap®, 22ER Insert, 22 Insert, External, ISO, 4 mm Pitch, 12.7 mm Inscribed Circle, 4.7 mm Thickness, 22 mm Length, ANSI Code: 22ER4.0ISO CP500, ISO Code: 22ER4.0ISO CP500, 0.53 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

The Thread turning insert 22ER4.0ISO CP500 features an ISO Metric external thread form type with a single tooth and three cutting edges. It is made from carbide with a PVD coating and uses the CP500 grade. The insert is designed for use primarily on steel, stainless steel, cast irons, superalloys, and titanium, with partial applicability to non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

ANSI Code 22ER4.0ISO CP500
Corner Radius 0.53 mm
Cutting Direction Right Hand
Finish PVD-TiAlN+TiN Coated
Included Angle 60 deg
Inscribed Circle 12.7 mm
Insert Size 22
Insert Style 22ER
ISO Code 22ER4.0ISO CP500
Length 22 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Pitch 4 mm
Series Snap-Tap®
Thickness 4.7 mm
Thread Standard ISO
Thread Type External
Type Laydown

Country of Origin: India
