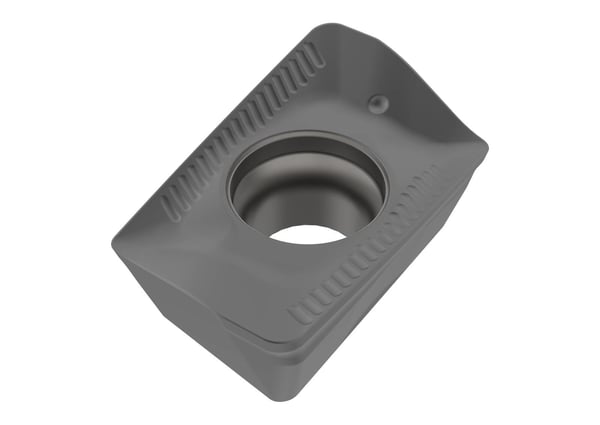

Seco 02743924 Milling Insert, ANSI Code: XOMX120408TR-ME08 MM4500, XOMX Insert, 120408 Insert, Carbide, Manufacturer's Grade: MM4500, Parallelogram Shape, Material Grade: C5

Seco Milling Insert, XOMX Insert, 120408 Insert, Parallelogram, 0.425 in Inscribed Circle, 5.1 mm Thickness, 8.2 mm Width, ME08 Chipbreaker, 0.8 mm Corner Radius, Manufacturer's Grade: MM4500, ANSI Code: XOMX120408TR-ME08 MM4500, ISO Code: XOMX120408TR-ME08 MM4500, Right Hand, Carbide, CVD Coated, Material Grade: C5, Cast Iron, Plastics and Non-Ferrous Metals Material Application

The Milling insert XOMX120408TR-ME08 MM4500 features two cutting edges with a clearance angle major of 15 degrees and a single-sided design. With a corner radius of 0.8 mm and a wiper edge length of 1.6 mm, it uses a carbide CVD grade. The insert rake angle is 20.1 degrees, and the cutting geometry type is ME08, suited for medium-easy applications with an average chip thickness of 0.08 mm. This insert is compatible with milling cutters, helical mills, square shoulder mills, chamfer mills, and plunge mills. It is suitable for use in milling cutters, helical turbo inserts with two cutting edges, turbo 12 inserts, chamfer turbo 12 inserts, and plunge turbo inserts, all with a single-sided design and insert size 12. The main application area is steel, with partial applicability to stainless steel and superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
