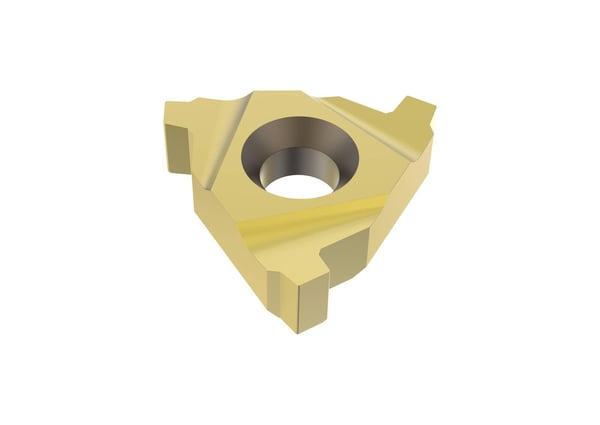

Seco 00064836 Snap-Tap® Laydown Threading Insert, ANSI Code: 22EL6ACME CP500, 22EL Insert, 6 TPI, External Thread, Acme Thread, Left Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M


Description

Seco Threading Insert, Laydown, Series: Snap-Tap®, 22EL Insert, 22 Insert, External Thread, Acme Thread Standard, 6 Threads per Inch, 12.7 mm Inscribed Circle, 4.7 mm Thickness, 22 mm Length, ANSI Code: 22EL6ACME CP500, ISO Code: 22EL6ACME CP500, 29 deg Included Angle, Manufacturer's Grade: CP500, Left Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

The Thread turning insert 22EL6ACME CP500 features an ACME external thread form type with a minimum of 6 threads per inch. It is made from a carbide PVD grade CP500. The insert has one tooth and three cutting edges. This insert is designed for use with steel, stainless steel, cast irons, superalloys, and titanium, and it is partially applicable for non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

ANSI Code 22EL6ACME CP500
Cutting Direction Left Hand
Finish PVD-TiAlN+TiN Coated
Included Angle 29 deg
Inscribed Circle 12.7 mm
Insert Size 22
Insert Style 22EL
ISO Code 22EL6ACME CP500
Length 22 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Series Snap-Tap®
Thickness 4.7 mm
Thread Standard Acme
Thread Type External
Threads per Inch 6
Type Laydown

Country of Origin: India
