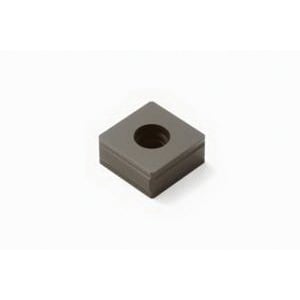

Seco 02731368 Milling Insert, ANSI Code: SNHX1106TN8-M11 T350M, SNHX Insert, 1106 Insert, Carbide, Manufacturer's Grade: T350M, Squared Shape


Description

Seco Milling Insert, SNHX Insert, 1106 Insert, Squared, 11 mm Inscribed Circle, 6.4 mm Thickness, 11 mm Width, 11 mm Length, M11 Chipbreaker, Manufacturer's Grade: T350M, ANSI Code: SNHX1106TN8-M11 T350M, ISO Code: SNHX 1106TN8-M11 T350M, Ambidextrous Hand, Carbide, CVD-TiCN+Al2O3 Coated, Cast Iron, Plastics and Non-Ferrous Metals Material Application

Specifications

ANSI Code SNHX1106TN8-M11 T350M
Chipbreaker M11
Finish CVD-TiCN+Al2O3 Coated
Hand of Insert Ambidextrous
Inscribed Circle 11 mm
Insert Size 1106
Insert Style SNHX
ISO Code SNHX 1106TN8-M11 T350M
Length 11 mm
Manufacturer's Grade T350M
Material Carbide
Material Application Cast Iron, Plastics and Non-Ferrous Metals
Shape Squared
Thickness 6.4 mm
Width 11 mm

Country of Origin: Sweden
