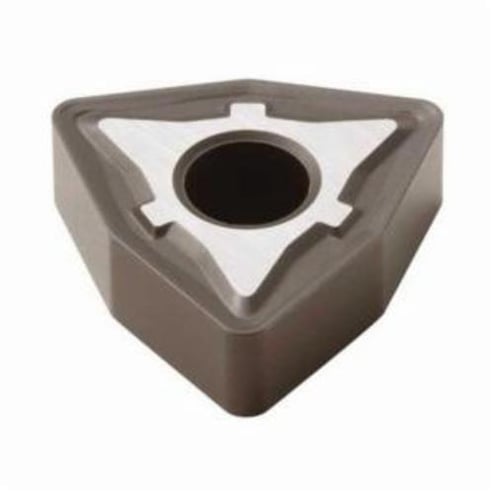

Seco 62804 Turning Insert, ANSI Code: WNMG443-M5 TP1500, WNMG Insert, Material Grade: P, 080612 Insert, Trigon Shape, 08 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1500


Description

Seco Turning Insert, WNMG Insert, 080612 Insert, Trigon Shape, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.35 mm Thickness, 08 Seat, Negative/Positive Rake, M5 Chipbreaker, 1.2 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP1500, ANSI Code: WNMG443-M5 TP1500, ISO Code: WNMG080612-M5 TP1500, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code WNMG443-M5 TP1500
Chipbreaker M5
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 5.15 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 080612
Insert Style WNMG
ISO Code WNMG080612-M5 TP1500
Manufacturer's Grade TP1500
Material Carbide
Material Grade P
Maximum Depth of Cut 5 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 08
Shape Trigon
Thickness 6.35 mm

Country of Origin: Sweden

Application:
Medium Applications
