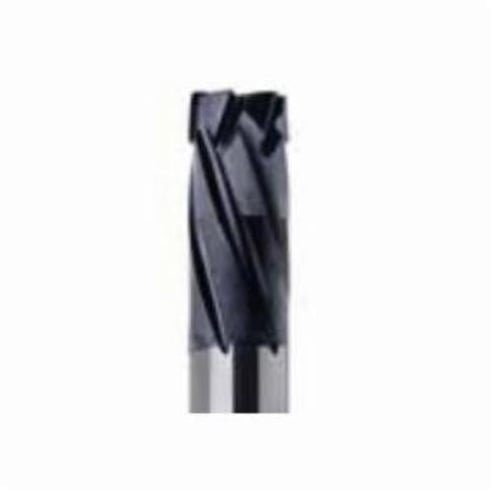

Seco JABRO® Composites 62330 Composites JC840 Double Helix Single End Mill, 10 mm Dia Cutter, 0.5 mm Corner Radius, 20 mm Length of Cut, 7 Flutes, 10 mm Dia Shank, 80 mm OAL, DURA/CVD Coated


Description

Seco JABRO® Composites End Mill, Double Helix Single End, Series: Composites JC840, 10 mm Cutter Dia, 0.5 mm Corner Radius, 80 mm Overall Length, 20 mm Length of Cut, 7 Flutes, Spiral Flute, 10 mm Shank Dia, Right Hand Cutting, 20 deg Helix Angle, Cylindrical Shank, ANSI Code: 840100R050Z7.0-DURA, ISO Code: 840100R050Z7.0-DURA, Solid Carbide, DURA/CVD Coated

The JABRO® range of milling tools, with CVD diamond coating to reduce wear, is designed for burrless (top and bottom) machining, side milling and 3D copy milling, contouring and slotting of layered carbon fiber and glass fiber composites as well as high performance engineering plastics such as peek and honeycomb materials.

Specifications

ANSI Code 840100R050Z7.0-DURA
Corner Radius 0.5 mm
Cutter Diameter 10 mm
Cutting Direction Right Hand
Finish DURA/CVD Coated
Flute Type Spiral
Helix Angle 20 deg
ISO Code 840100R050Z7.0-DURA
Length of Cut 20 mm
Material Solid Carbide
Number of Flutes 7
Overall Length 80 mm
Series Composites JC840
Shank Diameter 10 mm
Shank Type Cylindrical
Type Double Helix Single End

Country of Origin: Netherlands

Application:
Radial, Ramping, Plunging and Drilling
