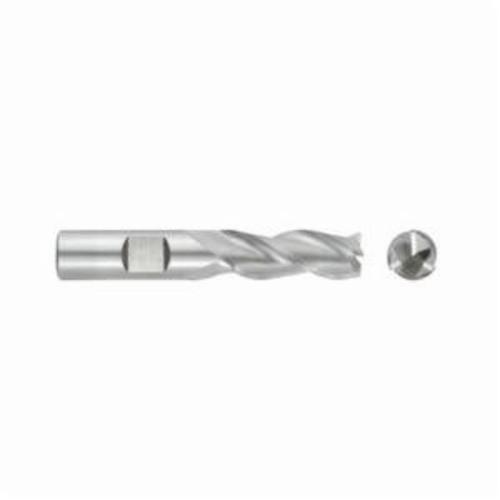

Seco Niagara Cutter N61735 Elite S335 Center Cutting High Performance Medium Length Single End End Mill, 3/8 in Dia Cutter, 0.02 in Corner Radius, 1 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Uncoated
Seco Niagara Cutter N61735 Elite S335 Center Cutting High Performance Medium Length Single End End Mill, 3/8 in Dia Cutter, 0.02 in Corner Radius, 1 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Uncoated
SKU: SECO 61735
Manufacturer Part Number: N61735
Brand: Seco
Description
Specifications
| ANSI Code | S335-0.375-D3-R020.3-Z3 |
| Corner Radius | 0.02 in |
| Cutter Diameter | 3/8 in |
| Cutting Direction | Right Hand |
| Finish | Uncoated |
| Flute Type | Spiral |
| Helix Angle | 35 deg |
| ISO Code | S335.375D3R020.3Z3 |
| Length of Cut | 1 in |
| Material | Solid Carbide |
| Number of Flutes | 3 |
| Overall Length | 2-1/2 in |
| Series | Elite S335 |
| Shank Diameter | 3/8 in |
| Shank Type | Weldon Flat |
| Type | Center Cutting High Performance Medium Length Single End |
Country of Origin: United States
Features
- Ideal for slotting in steel, stainless steel, titanium and high temperature alloys
- Large area for chip evacuation
