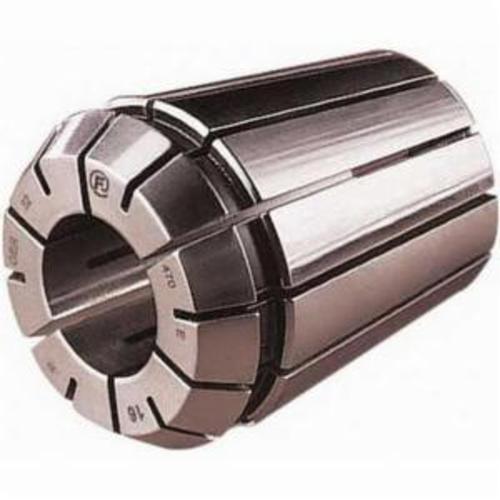

Seco Seco-Capto™ 75042076 EPB 5880 ER Collet, ER16, 27 mm OAL, 10 mm Capacity, 27 mm L Clamping Hole, 17 mm Dia Body, 17 mm Dia Head


Description

Seco Seco-Capto™ ER Collet, Series: EPB 5880, ER16 Size, 17 mm Diameter Body, 17 mm Diameter Head, 27 mm Overall Length, 10 mm Capacity, 27 mm Clamping Hole Length, ANSI Code: 58801610

Specifications

ANSI Code 58801610
Body Diameter 17 mm
Capacity 10 mm
Clamping Hole Length 27 mm
Head Diameter 17 mm
Overall Length 27 mm
Series EPB 5880
Size ER16

Country of Origin: France

Standards and Approvals: ISO 15488-B

Application:
For holding cylindrical shank tools without flats

Features

  • GDG Code: C71
  • 10 um maximum run-out at 3XD when assembled on a ER chuck type 5675
  • 8 deg taper
  • 0.01 mm TIR
  • -1 mm clamping range
