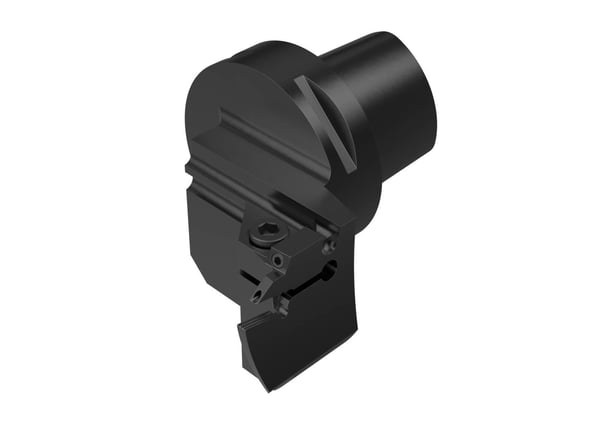

Seco 02718556 Seco-Capto™ Jetstream Tooling® External Multi-Directional Modular Turning Unit Head, C6 System, Right Hand Cutting, 12 mm Max Depth of Cut, 4 mm Max Width of Cut, LCGF/LCGN/LCMF/LCMR Insert, 65 mm L Head/Projection, 130 mm Dia Max Workpiece


Description

Seco Modular Turning Unit Head, External Multi-Directional, Series: Seco-Capto™ Jetstream Tooling®, 65 mm Head Length/Projection, System Size: C6, 12 mm Maximum Depth of Cut, 4 mm Maximum Width of Cut, 130 mm Diameter Maximum Workpiece, LCGF/LCGN/LCMF/LCMR Insert, Insert Compatibility: LC..1604.., Right Hand Cutting Direction, 45 mm Center to Cutting Edge, Secoloc™ Clamp Insert Holding Method

The Seco MDT (multi-directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off and threading. The unique Secoloc™ clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc™ combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability.

Specifications

Center to Cutting Edge 45 mm
Cutting Direction Right Hand
Head Length/Projection 65 mm
Insert Compatibility LC..1604..
Insert Holding Method Secoloc™ Clamp
Insert Style LCGF/LCGN/LCMF/LCMR
Maximum Depth of Cut 12 mm
Maximum Width of Cut 4 mm
Maximum Workpiece Diameter 130 mm
Series Seco-Capto™ Jetstream Tooling®
System Size C6
Type External Multi-Directional

Includes: TCEI0613 Clamp Screw and 5SMS795 Clamp Key

Country of Origin: India

Application:
Grooving, Profiling, Turning, Parting-off and Threading
