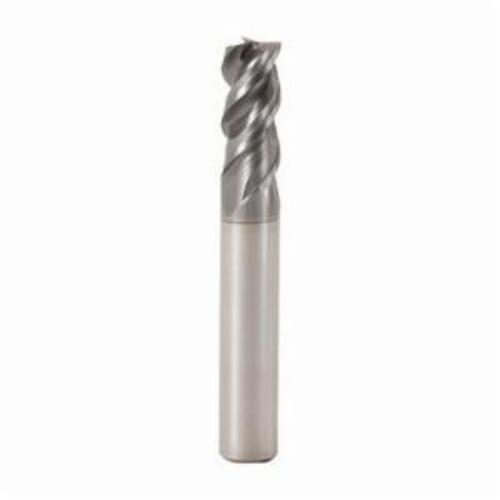

Seco JABRO® Solid2 02700384 Solid2 JS553 Center Cutting High Performance Regular Length Single End Universal End Mill, 20 mm Dia Cutter, 1 mm Corner Radius, 42 mm Length of Cut, 3 Flutes, 20 mm Dia Shank, 110 mm OAL, SIRON-A/PVD Coated


Description

Seco JABRO® Solid2 End Mill, Center Cutting High Performance Regular Length Single End Universal, Series: Solid2 JS553, 20 mm Diameter Cutter, 1 mm Corner Radius, 110 mm Overall Length, 42 mm Length of Cut, 3 Flutes, Right Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 48 deg Helix Angle, Weldon Flat Shank, ANSI Code: 553200R100Z3.0-SIRON-AW, ISO Code: 553200R100Z3.0-SIRON-AW, Solid Carbide, SIRON-A/PVD Coated

Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.

Specifications

ANSI Code 553200R100Z3.0-SIRON-AW
Corner Radius 1 mm
Cutter Diameter 20 mm
Cutting Direction Right Hand
Finish SIRON-A/PVD Coated
Flute Type Right Spiral
Helix Angle 48 deg
ISO Code 553200R100Z3.0-SIRON-AW
Length of Cut 42 mm
Material Solid Carbide
Number of Flutes 3
Overall Length 110 mm
Series Solid2 JS553
Shank Diameter 20 mm
Shank Type Weldon Flat
Type Center Cutting High Performance Regular Length Single End Universal

Country of Origin: Netherlands

Application:
General Machining, Radial, Ramping, Plunging and Drilling

Features

  • Uneven pitch
