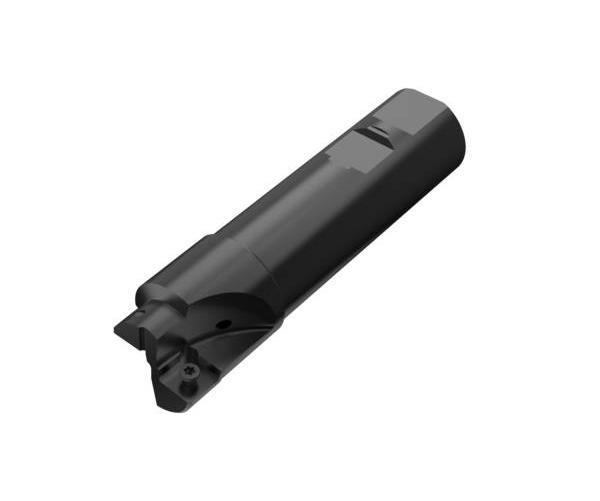

Seco 75054857 R417.19 Indexable Square-Shoulder End Mill, 1.181 in Dia Cutting, Weldon Shank, 90 deg Lead Angle, 0.315 in Max Depth of Cut


Description

Seco, 75054857, Square-Shoulder End Mill, Indexable, Series: R417.19, 1.181 in Diameter Cutting, 5.118 in Overall Length, 0.315 in Maximum Depth of Cut, 2 Inserts, 1 in Shank Diameter, Weldon Shank, 90 deg Lead Angle, Through Coolant (Yes/No): No

Specifications

Cutting Diameter 1.181 in
Lead Angle 90 deg
Maximum Depth of Cut 0.315 in
Number of Inserts 2
Overall Length 5.118 in
Series R417.19
Shank Diameter 1 in
Shank Type Weldon
Through Coolant (Yes/No) No
Type Indexable

Country of Origin: China

Features

  • Smooth cutting, reduced spindle bearing wear via a highly balanced tool and high security through a center-lock clamping system, all engineered in an economical solution
