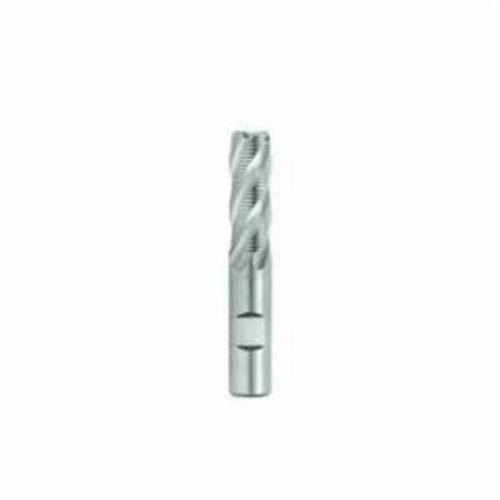

Seco Niagara Cutter 17012289 EXR350 Center Cutting Medium Length Single End End Mill, 5/8 in Dia Cutter, 0.03 in Corner Radius, 1-5/8 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-3/4 in OAL, TiCN Coated


Description

Seco Niagara Cutter End Mill, Center Cutting Medium Length Single End, Series: EXR350, 5/8 in Diameter Cutter, 0.03 in Corner Radius, 3-3/4 in Overall Length, 1-5/8 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Weldon Flat Shank, ANSI Code: EXR350-0.625-D3-C030.3-Z4, ISO Code: EXR350.625D3C030.3Z4, 8.5% Cobalt, TiCN Coated

Specifications

ANSI Code EXR350-0.625-D3-C030.3-Z4
Corner Radius 0.03 in
Cutter Diameter 5/8 in
Cutting Direction Right Hand
Finish TiCN Coated
Flute Type Spiral
Helix Angle 35 deg
ISO Code EXR350.625D3C030.3Z4
Length of Cut 1-5/8 in
Material 8.5% Cobalt
Number of Flutes 4
Overall Length 3-3/4 in
Series EXR350
Shank Diameter 5/8 in
Shank Type Weldon Flat
Type Center Cutting Medium Length Single End

Country of Origin: United States

Application:
Slotting, Pocketing and Profiling
