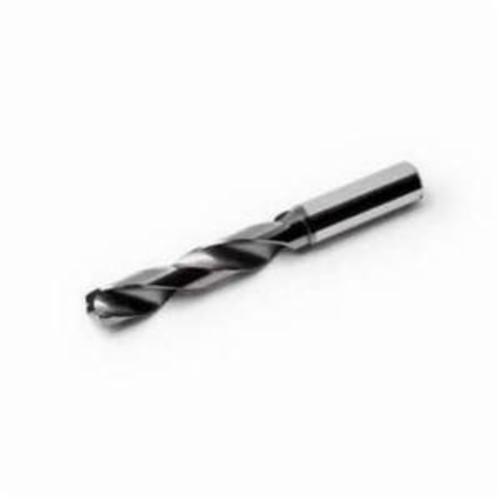

Seco Feedmax™ 02691582 SD203A-N Shank Drill, 11 mm Drill - Metric, 0.4331 in Drill - Decimal Inch, Solid Carbide, DLC Coated


Description

Seco Feedmax™ Shank Drill, Series: SD203A-N, Metric, 11 mm Drill - Metric, 0.4331 in Drill - Decimal Inch, 102 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 55 mm Flute Length, 12 mm Dia x 45 mm L Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, DLC Coated, Applicable Materials: Aluminum and Non-Ferrous Materials

Seco Feedmax™ is our latest generation of high performance solid carbide drills. They offer a unique combination of state-of-the-art carbide, coating and geometry technology.

Specifications

Applicable Materials Aluminum and Non-Ferrous Materials
Cutting Depth 3XD
Cutting Direction Right Hand
Cutting Edge Material Solid Carbide
Drill Diameter Measurement System Metric
Drill Size - Decimal Inch 0.4331 in
Drill Size - Metric 11 mm
Finish DLC Coated
Flute Length 55 mm
Flute Type Spiral
Material Solid Carbide
Number of Flutes 2
Overall Length 102 mm
Point Angle 140 deg
Point Type Self-Centering
Series SD203A-N
Shank Size 12 mm Dia x 45 mm L
Shank Type Cylindrical

Country of Origin: Sweden

Standards and Approvals: DIN 6537A

Application:
For hole making applications

Features

  • Solid carbide drills combine state-of-the-art carbide, coating and geometry technology into a unique high performance tool
  • Designed for high productivity and low cost per hole
  • The self-centering geometry provides high hole quality with no need for center drilling operations
  • A protective corner chamfer further enhances application security
