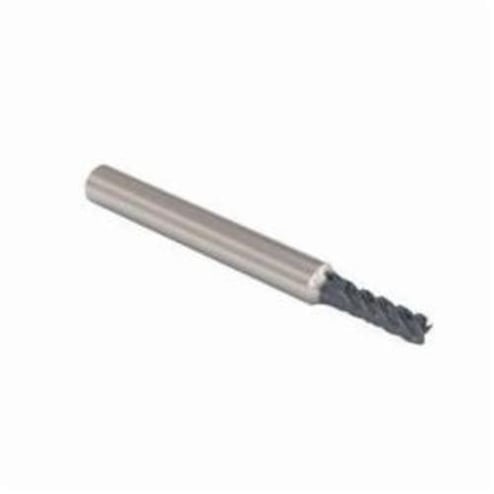

Seco JABRO® 53044 Solid2 JS554 High Performance Single End Universal End Mill, 4 mm Dia Cutter, 0.05 mm Corner Radius, 10 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 57 mm OAL, SIRON-A/PVD Coated


Description

Seco JABRO® End Mill, High Performance Single End Universal, Series: Solid2 JS554, 4 mm Diameter Cutter, 0.05 mm Corner Radius, 57 mm Overall Length, 10 mm Length of Cut, 4 Flutes, Right Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 48 deg Helix Angle, Cylindrical Shank, ANSI Code: JS554040F2C.0Z4C-SIRA, ISO Code: JS554040F2C.0Z4C-SIRA, Solid Carbide, SIRON-A/PVD Coated

Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.

Specifications

ANSI Code JS554040F2C.0Z4C-SIRA
Corner Radius 0.05 mm
Cutter Diameter 4 mm
Cutting Direction Right Hand
Finish SIRON-A/PVD Coated
Flute Type Right Spiral
Helix Angle 48 deg
ISO Code JS554040F2C.0Z4C-SIRA
Length of Cut 10 mm
Material Solid Carbide
Number of Flutes 4
Overall Length 57 mm
Series Solid2 JS554
Shank Diameter 6 mm
Shank Type Cylindrical
Type High Performance Single End Universal

Country of Origin: Netherlands

Application:
General Machining, Radial and Ramping
