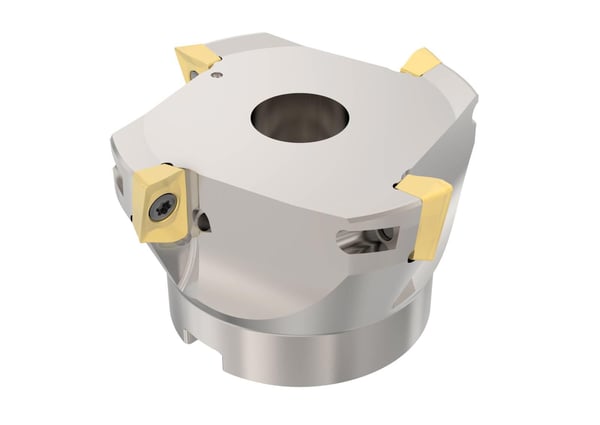

Seco 02689816 R220.69 Indexable Square-Shoulder Face Mill, 2.5 in Dia Cutting, 0.433 in Max Depth of Cut, 0.75 in Dia Arbor Hole, 90| deg Lead Angle


Description

Seco, 02689816, Square-Shoulder Face Mill, Indexable, Series: R220.69, 2.5 in Diameter Cutting, 0.433 in Maximum Depth of Cut, 4 Inserts, Insert Compatibility: XO.X12, 0.75 in Arbor Hole, 90| deg Lead Angle, Right Hand Cutting Direction, Through Coolant (Yes/No): Yes

Specifications

Arbor Hole Diameter 0.75 in
Cutting Diameter 2.5 in
Cutting Direction Right Hand
Insert Compatibility XO.X12
Lead Angle 90 deg
Maximum Depth of Cut 0.433 in
Number of Inserts 4
Series R220.69
Through Coolant (Yes/No) Yes
Type Indexable

Country of Origin: India

Features

  • Coated, pre-hardened cutter body with two different pitch configurations for meeting tight tolerances and providing high reliability in a broad range of workpiece materials
  • Not only does this coated/hardened surface protect the tool from wear, it also prevents chips from welding on the cutter body
