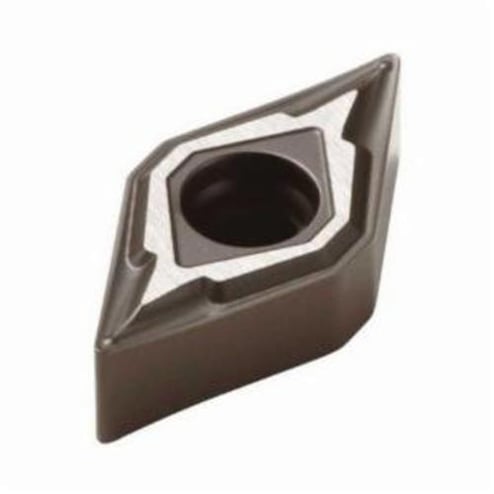

Seco 52563 Turning Insert, ANSI Code: DNMU333-MF2 TP2500, DNMU Insert, Material Grade: P, 110412 Insert, Diamond Shape, 11 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2500


Description

Seco Turning Insert, DNMU Insert, 110412 Insert, Diamond Shape, 3.75 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 4.76 mm Thickness, 11 Seat, Negative/Positive Rake, MF2 Chipbreaker, 1.2 mm Corner Radius, 3.81 mm Diameter Hole, Manufacturer's Grade: TP2500, ANSI Code: DNMU333-MF2 TP2500, ISO Code: DNMU110412-MF2 TP2500, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code DNMU333-MF2 TP2500
Chipbreaker MF2
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 3.81 mm
Included Angle 55 deg
Inscribed Circle 9.53 mm
Insert Size 110412
Insert Style DNMU
ISO Code DNMU110412-MF2 TP2500
Manufacturer's Grade TP2500
Material Carbide
Material Grade P
Maximum Depth of Cut 3.75 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 11
Shape Diamond
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium and Finishing
