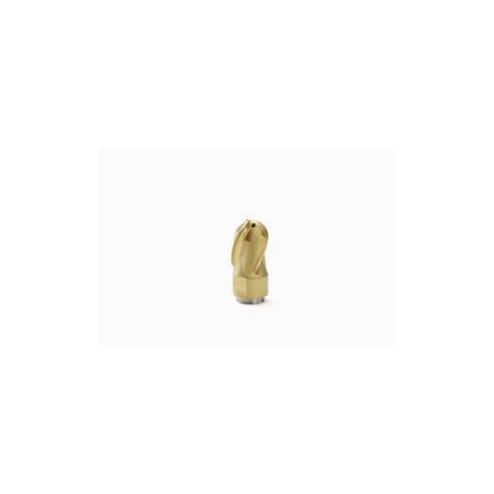

Seco 02680072 MP10 Milling Tip Inserts, MP10/ MP10 Milling Tip Style, Ball Nose Milling Tip, Carbide, 0.195 in Corner Radius, Manufacturer's Grade: MP3000, (3,3) Flutes, C5 Material Grade


Description

Seco, 02680072, Tip Inserts, Milling, Series: MP10, MP10/ MP10 Milling Tip, Ball Nose Milling Tip, 0.39 in Diameter Cutting, 0.468 in Maximum Depth of Cut, 3,3 Flutes, M03 Chipbreaker, 0.195 in Corner Radius, 90 deg Included Angle, Manufacturer's Grade: MP3000, Carbide, Material Grade: C5

Specifications

Chipbreaker M03
Corner Radius 0.195 in
Cutting Diameter 0.39 in
Included Angle 90 deg
Manufacturer's Grade MP3000
Material Carbide
Material Grade C5
Maximum Depth of Cut 0.468 in
Milling Tip Style MP10/ MP10
Milling Tip Type Ball Nose
Number of Flutes 3,3
Series MP10
Type Milling

Country of Origin: Sweden

Standards and Approvals: PROP65

Features

  • A unique, versatile end milling system that can combine different solutions for optimum accessibility and maximum stability and security,
  • Highly wear resistant optimized grade for milling in steel
