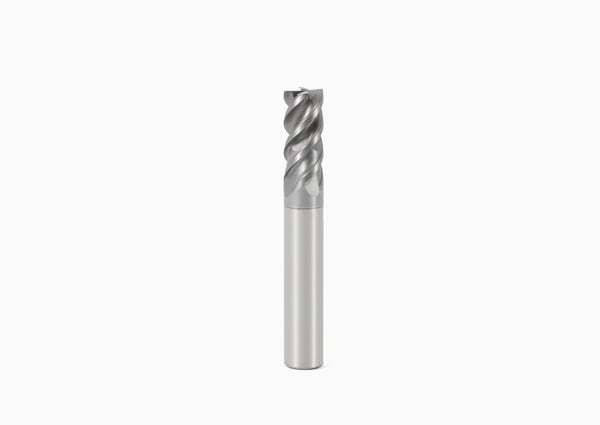

Seco JABRO® Solid2 02679563 Solid2 JS554 High Performance Single End Universal End Mill, 16 mm Dia Cutter, 1 mm Corner Radius, 34 mm Length of Cut, 4 Flutes, 16 mm Dia Shank, 90 mm OAL, SIRON-A/PVD Coated


Description

Seco JABRO® Solid2 End Mill, High Performance Single End Universal, Series: Solid2 JS554, 16 mm Diameter Cutter, 1 mm Corner Radius, 90 mm Overall Length, 34 mm Length of Cut, 4 Flutes, Right Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 48 deg Helix Angle, Weldon Flat Shank, ANSI Code: 554160R100Z4.3-SIRON-A, ISO Code: 554160R100Z4.3-SIRON-A, Solid Carbide, SIRON-A/PVD Coated

Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.

Specifications

ANSI Code 554160R100Z4.3-SIRON-A
Corner Radius 1 mm
Cutter Diameter 16 mm
Cutting Direction Right Hand
Finish SIRON-A/PVD Coated
Flute Type Right Spiral
Helix Angle 48 deg
ISO Code 554160R100Z4.3-SIRON-A
Length of Cut 34 mm
Material Solid Carbide
Number of Flutes 4
Overall Length 90 mm
Series Solid2 JS554
Shank Diameter 16 mm
Shank Type Weldon Flat
Type High Performance Single End Universal

Country of Origin: Netherlands

Application:
General Machining, Radial and Ramping
