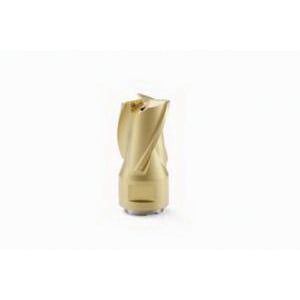

Seco 02679122 Minimaster™ Plus Milling Tip Insert, ANSI Code: MP10-10012R08Z3-E03 F40M, MP10 Milling Tip Style, Solid Carbide, 0.8 mm Corner Radius, Manufacturer's Grade: F40M, 3 Flutes


Description

Seco Milling Tip Insert, Series: Minimaster™ Plus, MP10 Milling Tip, 10 mm Cutting Dia, 12 mm Maximum Depth of Cut, 3 Flutes, E03, 0.8 mm Corner Radius, Manufacturer's Grade: F40M, ANSI Code: MP10-10012R08Z3-E03 F40M, ISO Code: MP10-10012R08Z3-E03 F40M, Solid Carbide, PVD-TiAlN+TiN Coated

Specifications

ANSI Code MP10-10012R08Z3-E03 F40M
Corner Radius 0.8 mm
Cutting Diameter 10 mm
Finish PVD-TiAlN+TiN Coated
Geometry E03
ISO Code MP10-10012R08Z3-E03 F40M
Manufacturer's Grade F40M
Material Solid Carbide
Maximum Depth of Cut 12 mm
Milling Tip Style MP10
Number of Flutes 3
Series Minimaster™ Plus

Country of Origin: Sweden

Application:
Slot Milling and Square Shoulder Milling
