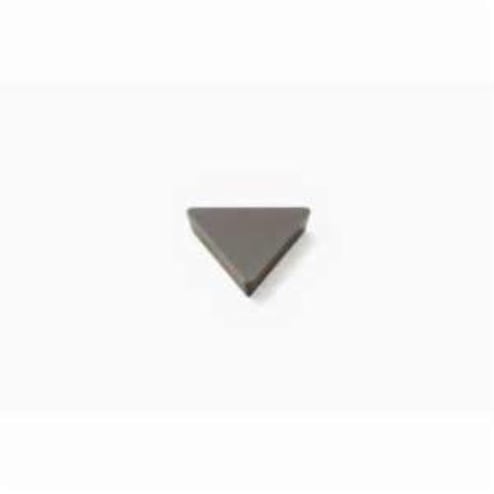

Seco 50551 Turning Insert, ANSI Code: TPUN432 TP3500, TPUN Insert, Material Grade: P, 220408 Insert, Triangular Shape, 22 Seat, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP3500


Description

Seco Turning Insert, TPUN Insert, 220408 Insert, Triangular, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 mm Length, 22 Seat, 0.8 mm Corner Radius, Manufacturer's Grade: TP3500, ANSI Code: TPUN432 TP3500, ISO Code: TPUN220408 TP3500, 60 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code TPUN432 TP3500
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Included Angle 60 deg
Inscribed Circle 12.7 mm
Insert Size 220408
Insert Style TPUN
ISO Code TPUN220408 TP3500
Length 22 mm
Manufacturer's Grade TP3500
Material Carbide
Material Grade P
Maximum Depth of Cut 5.25 mm
Relief Angle 11 deg
Seat Size 22
Shape Triangular
Thickness 4.76 mm

Country of Origin: Sweden

Application:
For finishing, medium-rough machining and rough machining
