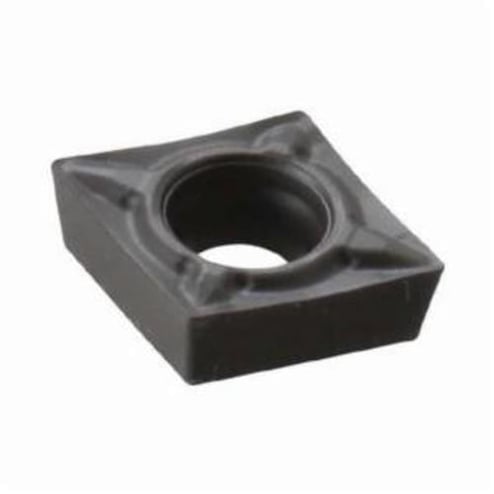

Seco 50458 Turning Insert, ANSI Code: CCMT431-F1 TP3500, CCMT Insert, Material Grade: P, 120404 Insert, Diamond Shape, 12 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP3500


Description

Seco Turning Insert, CCMT Insert, 120404 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 5.6 mm Hole Dia, Manufacturer's Grade: TP3500, ANSI Code: CCMT431-F1 TP3500, ISO Code: CCMT120404-F1 TP3500, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code CCMT431-F1 TP3500
Chipbreaker F1
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 5.6 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 120404
Insert Style CCMT
ISO Code CCMT120404-F1 TP3500
Manufacturer's Grade TP3500
Material Carbide
Material Grade P
Maximum Depth of Cut 5.25 mm
Rake Positive
Relief Angle 7 deg
Seat Size 12
Shape Diamond
Thickness 4.76 mm

Country of Origin: Czech Republic

Application:
Finishing Applications
