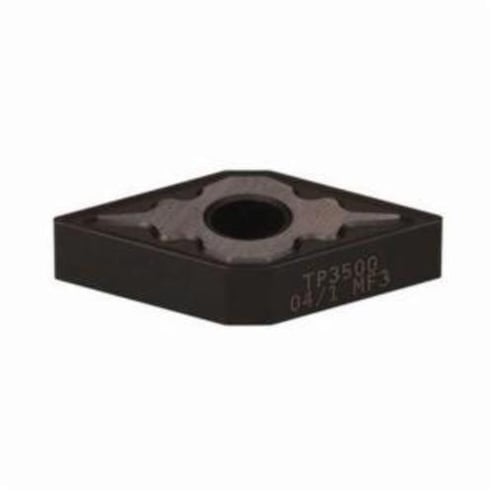

Seco 50344 Turning Insert, ANSI Code: DNMG431-MF3 TP3500, DNMG Insert, Material Grade: P, 150404 Insert, Diamond Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP3500


Description

Seco Turning Insert, DNMG Insert, 150404 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Negative Rake, MF3 Chipbreaker, 0.4 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: TP3500, ANSI Code: DNMG431-MF3 TP3500, ISO Code: DNMG150404-MF3 TP3500, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code DNMG431-MF3 TP3500
Chipbreaker MF3
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 5.15 mm
Included Angle 55 deg
Inscribed Circle 12.7 mm
Insert Size 150404
Insert Style DNMG
ISO Code DNMG150404-MF3 TP3500
Manufacturer's Grade TP3500
Material Carbide
Material Grade P
Maximum Depth of Cut 5.25 mm
Rake Negative
Relief Angle 0 deg
Seat Size 15
Shape Diamond
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium and Finishing
