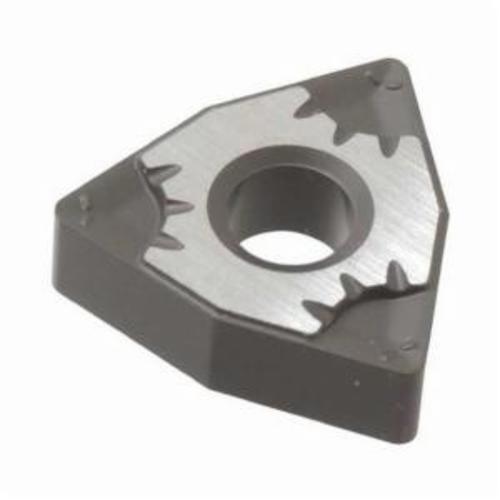

Seco 50241 Turning Insert, ANSI Code: WNMG432-MF5 TP3500, WNMG Insert, Material Grade: P, 080408 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP3500


Description

Seco Turning Insert, WNMG Insert, 080408 Insert, Trigon, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Negative Rake, MF5 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: TP3500, ANSI Code: WNMG432-MF5 TP3500, ISO Code: WNMG080408-MF5 TP3500, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code WNMG432-MF5 TP3500
Chipbreaker MF5
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 5.15 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 080408
Insert Style WNMG
ISO Code WNMG080408-MF5 TP3500
Manufacturer's Grade TP3500
Material Carbide
Material Grade P
Maximum Depth of Cut 5 mm
Rake Negative
Relief Angle 0 deg
Seat Size 08
Shape Trigon
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium and Finishing
