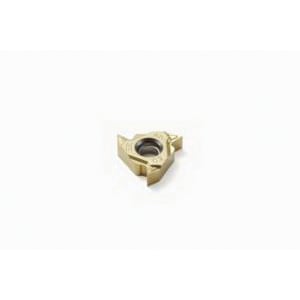

Seco 00050098 Snap-Tap® Laydown Threading Insert, ANSI Code: 16ERAG60-A1 CP500, 16ERAG Insert, 48 to 8 TPI, External Thread, 60 deg Partial Profile Thread, 0.5 to 3 mm Pitch, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M


Description

Seco Threading Insert, Laydown, Series: Snap-Tap®, 16ERAG Insert, 16 Insert, External Thread, 60 deg Partial Profile Thread Standard, 0.5 to 3 mm Pitch, 48 to 8 Threads per Inch, 9.5 mm Inscribed Circle, 3.5 mm Thickness, 16.5 mm Length, ANSI Code: 16ERAG60-A1 CP500, ISO Code: 16ERAG60-A1 CP500, A1 Chipbreaker, 0.08 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: CP500, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

Specifications

ANSI Code 16ERAG60-A1 CP500
Chipbreaker A1
Corner Radius 0.08 mm
Cutting Direction Right Hand
Finish PVD-TiAlN+TiN Coated
Included Angle 60 deg
Inscribed Circle 9.5 mm
Insert Size 16
Insert Style 16ERAG
ISO Code 16ERAG60-A1 CP500
Length 16.5 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Pitch 0.5 to 3 mm
Series Snap-Tap®
Thickness 3.5 mm
Thread Standard 60 deg Partial Profile
Thread Type External
Threads per Inch 48 to 8
Type Laydown

Country of Origin: Sweden
