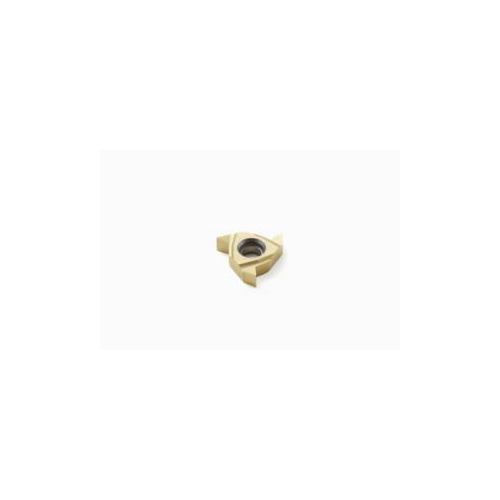

Seco 00048347 16EL Laydown Threading Insert, 16 TPI, External Thread, 0.059 in Pitch, Left Cutting, Manufacturer's Grade: CP500

Seco, 00048347, Threading Insert, Laydown, Series: 16EL, External Thread, 0.059 in Pitch, 16 TPI Threads per Inch, 0.375 in Inscribed Circle, 0.137 in Thickness, 0.65 in Length, 0.003 in Corner Radius, 55 deg Included Angle, Manufacturer's Grade: CP500, Left Cutting Direction

The Thread turning insert 16ELA55 CP500 features a partial profile 55 external thread form type with a minimum of 48 threads per inch. It has a single tooth count and three cutting edges. The insert is made from carbide with a PVD coating and uses the CP500 grade. It is designed primarily for steel and stainless steel workpiece materials and is partially applicable for cast irons as well as superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
