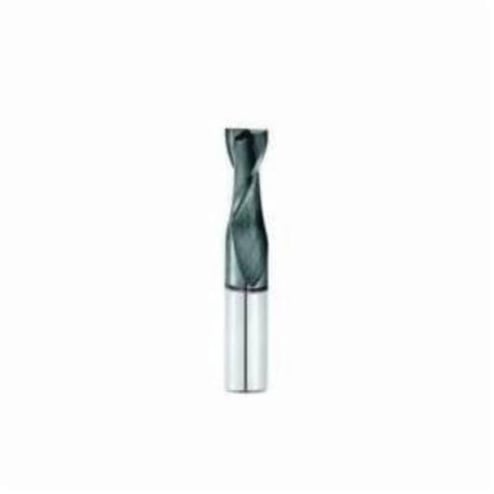

Seco Niagara Cutter N46332 C230M Center Cutting Medium Length Single End Square End End Mill, 2 mm Dia Cutter, 6.3 mm Length of Cut, 2 Flutes, 3 mm Dia Shank, 39 mm OAL, AlTiN Coated


Description

Seco Niagara Cutter End Mill, Center Cutting Medium Length Single End Square End, Series: C230M, 2 mm Diameter Cutter, 39 mm Overall Length, 6.3 mm Length of Cut, 2 Flutes, Spiral Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: C230M-020-F3-S.0-Z2, ISO Code: C230M020F3S.0Z2, Solid Carbide, AlTiN Coated

Specifications

ANSI Code C230M-020-F3-S.0-Z2
Cutter Diameter 2 mm
Cutting Direction Right Hand
Finish AlTiN Coated
Flute Type Spiral
Helix Angle 30 deg
ISO Code C230M020F3S.0Z2
Length of Cut 6.3 mm
Material Solid Carbide
Number of Flutes 2
Overall Length 39 mm
Series C230M
Shank Diameter 3 mm
Shank Type Cylindrical
Type Center Cutting Medium Length Single End Square End

Country of Origin: United States

Application:
For general machining of most materials

Features

  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
  • 90 deg cutting edge
  • 30 deg axial rake
  • 7 deg radial rake
  • 16 deg neck
  • F - Step tool shape
