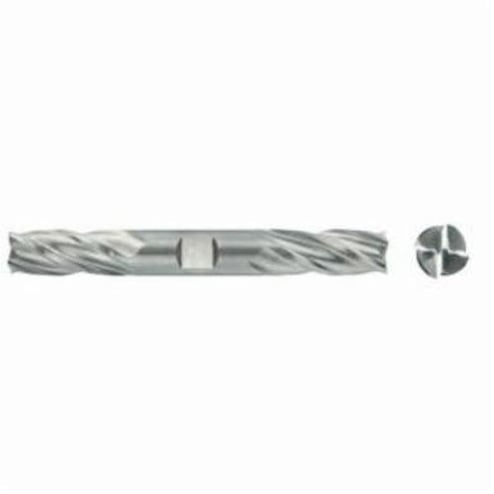

Seco Niagara Cutter N46079 DC402 Center Cutting Double End Medium Length Square End End Mill, 15/64 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-3/8 in OAL, Uncoated


Description

Seco Niagara Cutter End Mill, Center Cutting Double End Medium Length Square End, Series: DC402, 15/64 in Diameter Cutter, 3-3/8 in Overall Length, 5/8 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: DC402-0.234-XF3-S.3-Z4, ISO Code: DC402.234XF3S.3Z4, HSS, Uncoated

Specifications

ANSI Code DC402-0.234-XF3-S.3-Z4
Cutter Diameter 15/64 in
Cutting Direction Right Hand
Finish Uncoated
Flute Type Spiral
Helix Angle 30 deg
ISO Code DC402.234XF3S.3Z4
Length of Cut 5/8 in
Material HSS
Number of Flutes 4
Overall Length 3-3/8 in
Series DC402
Shank Diameter 3/8 in
Shank Type Weldon Flat
Type Center Cutting Double End Medium Length Square End

Country of Origin: United States

Application:
For profile milling applications in all common materials

Features

  • High speed steel (HSS) provides good wear resistance, it is commonly used for general purpose applications on both ferrous and non-ferrous materials
  • Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
  • 90 deg cutting edge
  • 1.562 in L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • Square nose end mills create sharp, unrounded cuts
  • Double-end end mills have cutting edges on both ends for longer tool life
  • Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
  • F - Step tool shape
