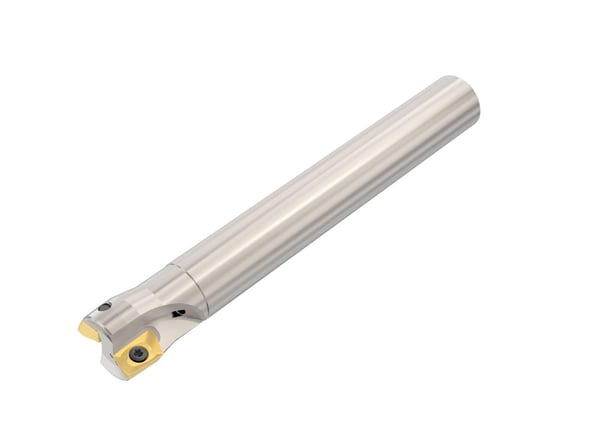

Seco 02688849 R217.69 Indexable Square-Shoulder End Mill, 0.875 in Dia Cutting, Cylindrical Shank, 90 deg Lead Angle, 0.433 in Max Depth of Cut


Description

Seco, 02688849, Square-Shoulder End Mill, Indexable, Series: R217.69, 0.875 in Diameter Cutting, 5.906 in Overall Length, 0.433 in Maximum Depth of Cut, Insert Compatibility: XO.X 1204, 0.75 in Shank Diameter, Cylindrical Shank, 4.724 in Shank Length, 90 deg Lead Angle, Through Coolant (Yes/No): Yes

Specifications

Cutting Diameter 0.875 in
Insert Compatibility XO.X 1204
Lead Angle 90 deg
Maximum Depth of Cut 0.433 in
Overall Length 5.906 in
Series R217.69
Shank Diameter 0.75 in
Shank Length 4.724 in
Shank Type Cylindrical
Through Coolant (Yes/No) Yes
Type Indexable

Country of Origin: India

Features

  • Coated, pre-hardened cutter body with two different pitch configurations for meeting tight tolerances and providing high reliability in a broad range of workpiece materials
  • Not only does this coated/hardened surface protect the tool from wear, it also prevents chips from welding on the cutter body
