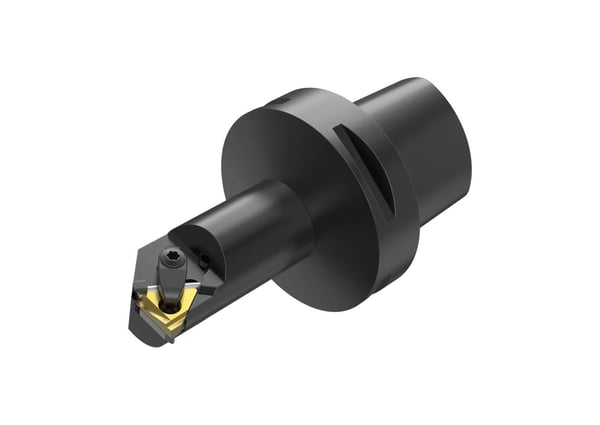

Seco 02644684 CNR Indexable Threading Toolholder, Internal Thread, Right Hand of Holder, Insert Compatibility: 27NR


Description

Seco, 02644684, Indexable Threading Toolholder, Series: CNR, Internal Thread, Right Hand of Holder, 7.480 in Overall Length, Insert Compatibility: 27NR, 6.299 in Head Length, 1.41 in Center to Cutting Edge, Clamp Insert Holding Method, Through Coolant (Yes/No): Yes

The Turning thread holder C8-CNR-36190-27HD features an internal machine workpiece connection ranging from C8 to 27. It is designed for internal use with internal coolant supply and operates with a right-hand cutting direction. The tool has a functional length of 190 mm. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Center to Cutting Edge 1.41 in
Hand of Holder Right Hand
Head Length 6.299 in
Insert Compatibility 27NR
Insert Holding Method Clamp
Overall Length 7.480 in
Series CNR
Thread Type Internal
Through Coolant (Yes/No) Yes

Country of Origin: India

Application:
For a large majority of common thread turning applications

Features

  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
